Rutland TS9205 EN2-5

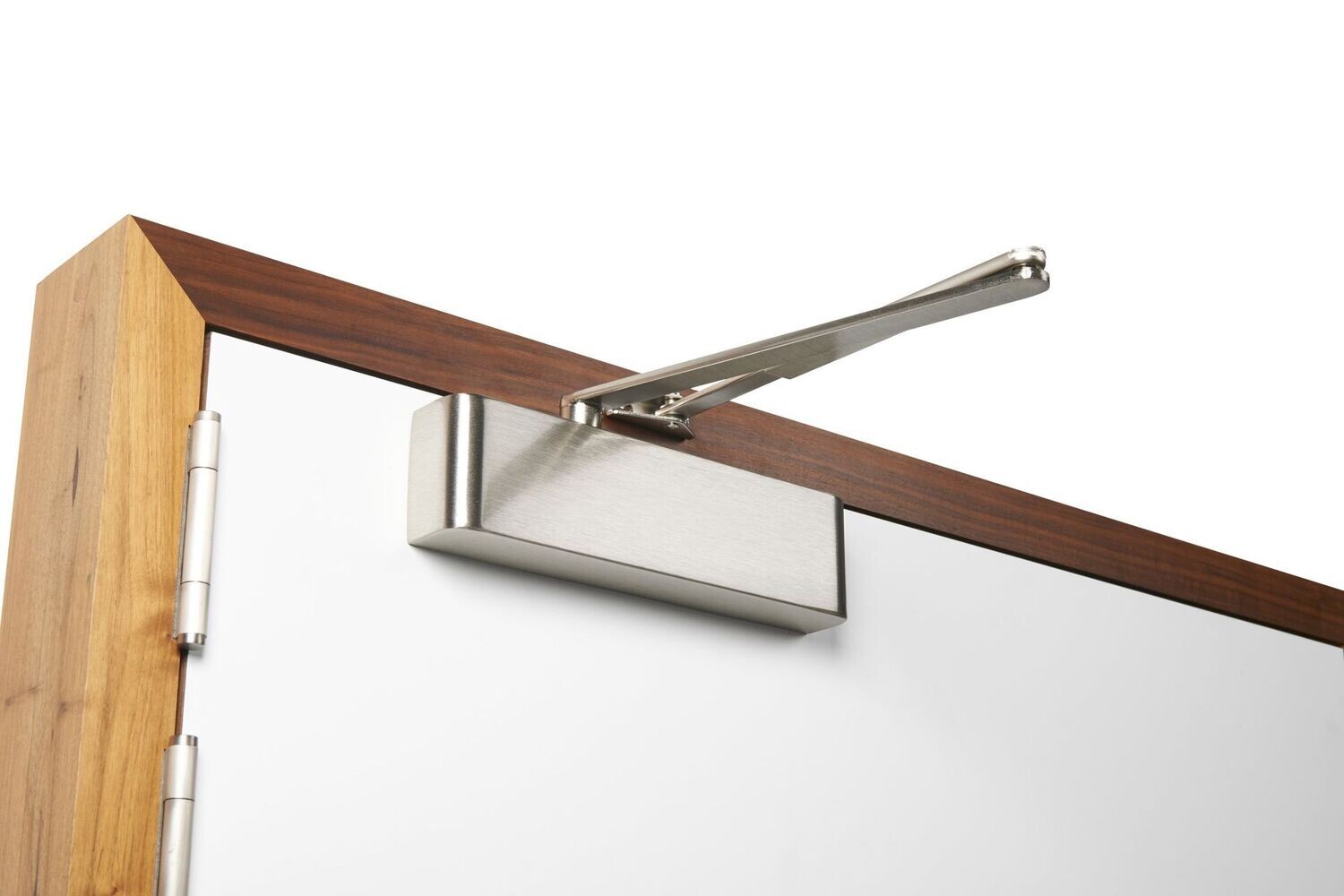

The Rutland TS9205 is a high efficiency door closer, known for its reliability and ease of opening.

Fire-rated for up to 120 minutes, and Certifire approved.

Combined unit (Closer, flat bar armset, parallel arm bracket and semi-radius cover).

Power size 2-5

DESCRIPTION

The Rutland TS.9205 Door closers with its renowned high efficiency, quality, reliability and ease of opening is known as one of the UK’s top specified door closer from Rutland. Now with its easy to read instructions and adjustable power EN2-5 mechanism, it is commanding a market share and saving approximately 12.5 minutes on fitting time.

Assisting door sets to meet the requirements of Approved Document M and BS 8300 recommendation are just some of its many advantages and have therefore been specified throughout the world in some of the most prestigious locations.

Temperature Stable hydraulic Oil is one of its unique properties which show the exacting standards that Rutland manufactures their products so they can be used in temperatures from -15ºC to 40ºC.

Features

• Power Size EN2-5
• Fire rated up to 120 minutes
• Adjustable closing & latch speed
• Maximum door mass: 110kg
• Max door width: 1250mm
• Silver SE finish
• Semi-radius cover
• Assists BS8300 for DocM contracts
• Slimline body and cover with only 40mm projection
• Standard, Parallel arm or Transom fitting position
• Suitable for left and right handed doors
• 35 year guarantee

Testing

• Certifire approved
• Complies with EN1634-1
• CE marked
• UKCA

Documentation

• Datasheet
• Fitting-Instructions-–-Push-side-parallel-arm
• Fitting-Instructions-–-Pull-side-standard-arm
• Operations-Maintenance-Manual
• IFCC Certificate
• CE Certificate
• CF Certificate
• door-closer-11
