Rutland TS5204 EN2-4

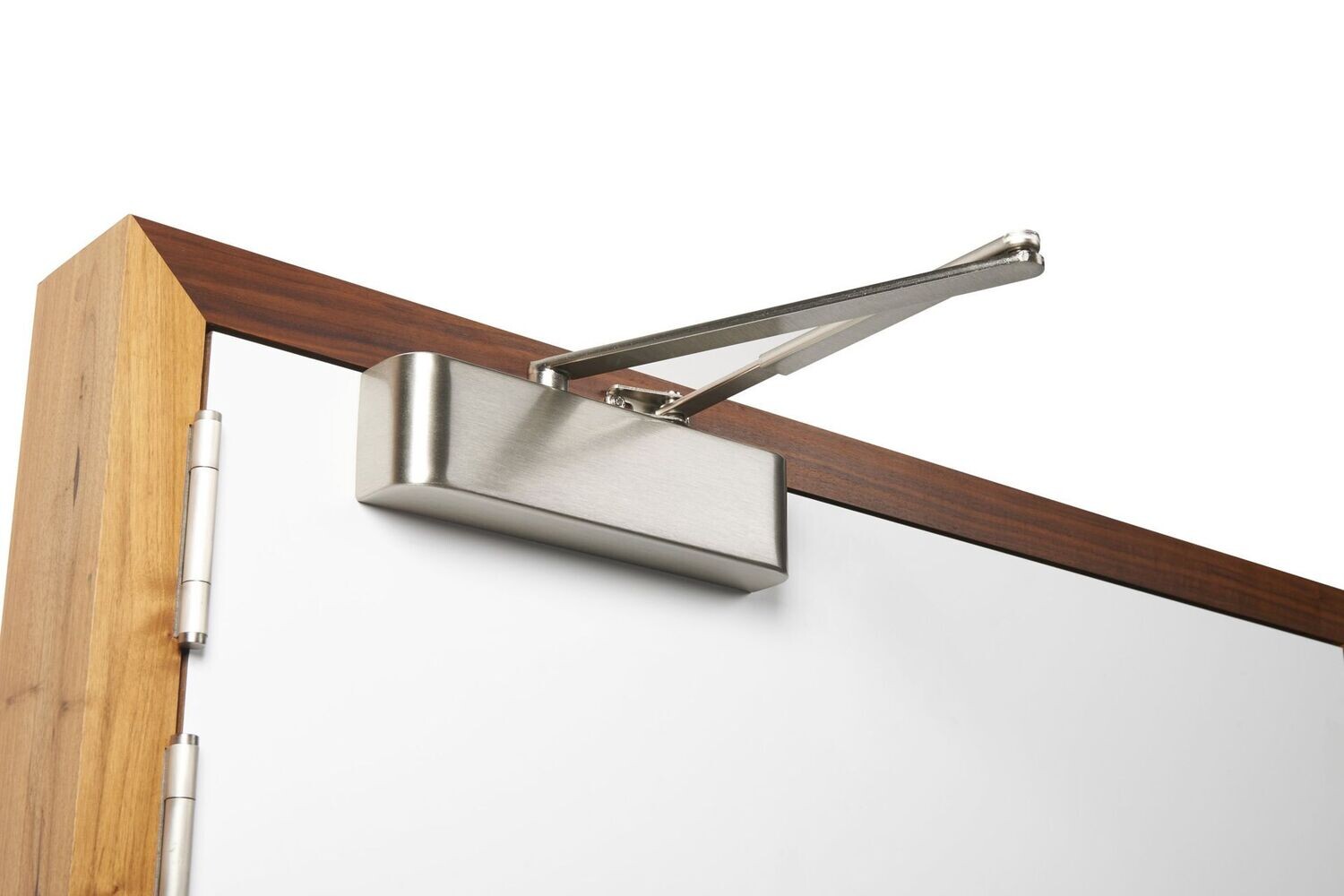

The Rutland TS.5204 is a medium/heavy duty overhead door closer offering outstanding performance and reliability, and remarkable value for money.

Adjustable closing and latch speed, with additional back check function.

Combined unit (Closer, flat bar armset, semi radius cover, parallel arm bracket and back check).

Power size 2-4.

DESCRIPTION

The TS5204 is engineered from exceptional high quality components and with variable power adjustment to EN 2-4. This CE-marked mechanism features slimline characteristics and a flat bar arm.

Temperature Stable Hydraulic Oil is one of its unique properties which show the exacting standards that Rutland manufactures their products to, so they can be used in temperatures from -15ºC to 40ºC.

Combined unit (Closer, flat bar armset, cover, PA bracket and back check).

• Power size – 2-4 adjustable by template
• Fire Rated up to 120 minutes
• Back check function
• Adjustable closing & latch speed
• Max door weight: 80kg
• Opening angle: 180 deg
• Max door width: 1100mm
• Silver (SE) finish
• With semi radius cover
• Tested to assist BS8300 for DocM contracts
• Standard, Parallel arm or Transom fitting position
• Suitable for left and right handed doors
• 25 year guarantee

Testing

• Certifire approved
• CE marked
• UKCA

Documentation:

• Fitting-Instructions-–-Push-Side-Parallel-Arm
• Fitting-Instructions-–-Pull-Side-Standard-Arm
• Operations-Maintenance-Manual

• TS5204 Door Closer – Declaration of Performance
• TS5204 Door Closer – Certificate of Constancy of Performance IFC
• TS5204 Door Closer – Certificate of Constancy of Performance
• TS5204 Door Closer – Controlled Door Closer Device IFC
• TS5204 Door Closer – Test Verification of Conformity
• TS5204 Door Closer – Application and Fixing Details
• TS5204 Door Closer – Product Brochure
• Certifire Certificate
