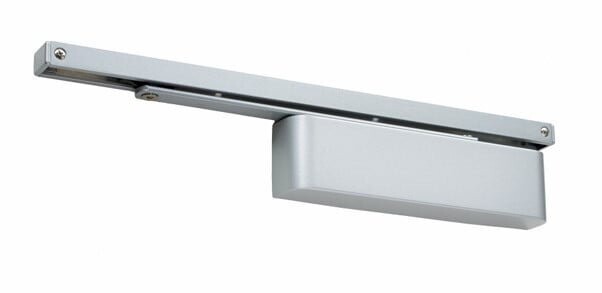

Rutland TS11204 - Silver

The Rutland TS11204 is a cam action closer renowned for its high efficiency and ease of opening.

This surface slide arm closer has a slimline construction, projecting only 39mm away from the door.

With semi-radius cover.

Power size 2-4.

DESCRIPTION

The TS.11204 Cam Action Closer is renowned for its high efficiency and ease of opening.

This Surface Slide arm closer has a slimline construction and temperature stable hydraulic fluid, which operates effectively in temperatures between -30°C and 60°C.

It features an adjustable latch and closing speed and is available with a mounting plate for increased fixing strength.

Features

• Power Size EN2-4
• Fire rated up to 120 minutes
• Adjustable closing & latch speed
• Maximum door mass: 80kg
• Max door width: 1100mm
• Silver SE finish
• Semi-radius cover
• Assists BS8300 for DocM contracts
• Very slimline, only projects 39mm away from the door
• Can be fitted in pull-side, push-side or transom fitting position
• 35 year guarantee

Testing

• Tested to 120 Minutes
• Certifire approved
• Complies with EN1634-1
• CE marked
• UKCA
