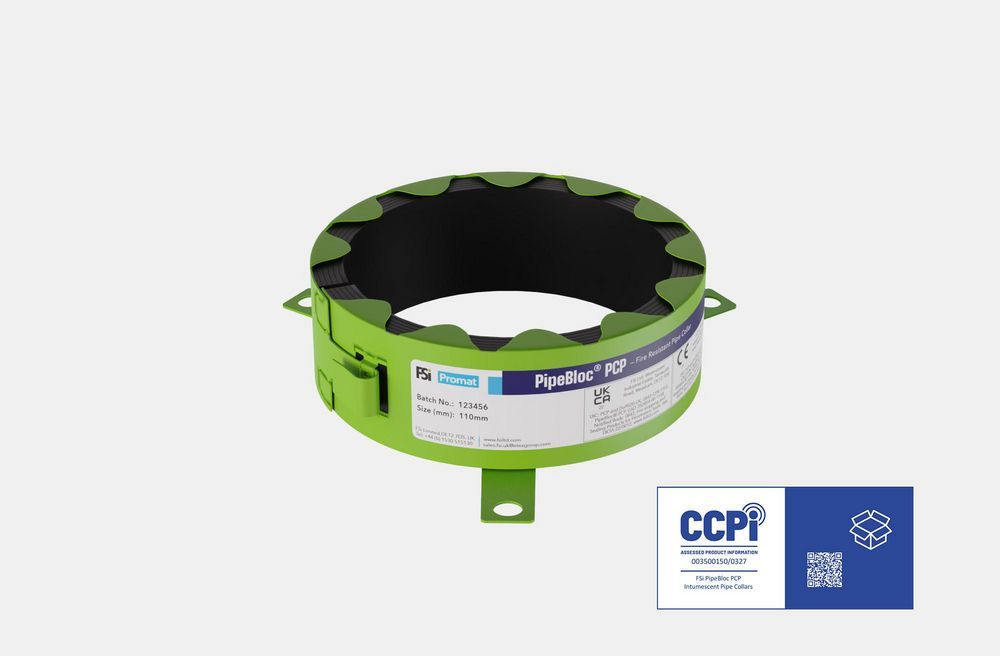

PipeBloc PCP Pipe Collar

PipeBloc PCP is a high-performance, prefabricated fire-resistant pipe collar designed to maintain the integrity of fire-rated walls and floors where service penetrations occur. Manufactured with a durable metal casing and a reactive intumescent insert, it expands rapidly under heat to form a high-pressure seal around combustible pipes, preventing the spread of fire and smoke between compartments.

Ideal for a wide range of internal applications, PipeBloc PCP delivers reliable passive fire protection while allowing for thermal and mechanical movement of pipework.

---

Key Features

• High-expansion intumescent material activates in a fire to seal pipe openings
• Suitable for a wide range of pipe sizes from 55mm to 160mm
• Pre-assembled for quick and efficient installation
• Tested on angled pipe penetrations for added flexibility
• Compatible with multiple fixing methods, including standard fixings and pigtail screws
• Can be installed directly onto PROMASEAL® Fire Barrier Batts
• Allows for ongoing thermal and mechanical pipe movement

---

Applications

• Fire sealing of plastic and combustible pipe penetrations through walls and floors
• Suitable for use with:
  • Plastic pipes
  • Cables
  • Insulated non-combustible pipes
• Designed for use alongside FSi systems such as Stopseal® Batt, Silverseal Compound, and Pyrocoustic® Sealant

---

Performance & Certification

• Tested to BS EN 1366-3: 2009 for penetration sealing systems
• Provides up to 240 minutes fire resistance
• UL-EU Approved (UL-EU-00942)
• CE Marked and UKCA Marked
• Halogen free and contains no asbestos, ceramic, or mineral fibres
