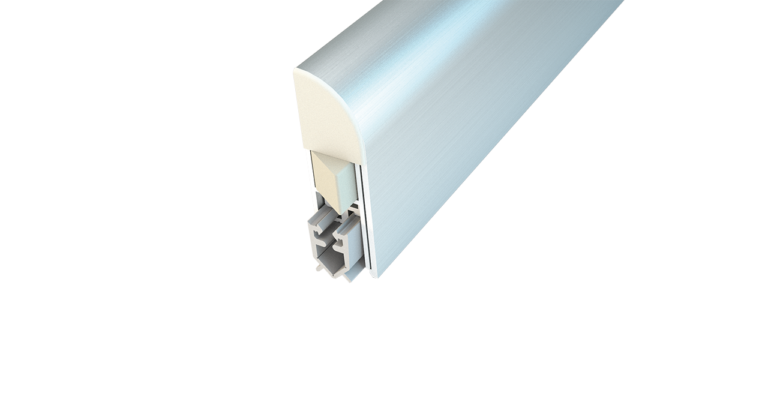

NOR820 Surface Mounted
The NOR820 drop seal provides smoke and acoustic performance without the removal of timber from the door.
Meets smoke requirements to BS 8214 and is acoustically tested in accordance with BS EN ISO 10140-2.
Certifire CF629
Fixing screws are supplied.
Technical Data
Application
Bottom edge of acoustic timber or metal doorsets
Fixing
Screw-fixed
Performance
Meets smoke requirements BS 8214
Acoustically tested in accordance with BS EN ISO 10140-2
Standard Lengths (mm)
400, 500, 600, 700, 800, 900, 1000, 1100, 1200
Actuation
Single
Material
Aluminium, PVC gasket
Size(s) (mm)
13.5×44
Colour(s)
Satin Silver, Grey gasket
Maximum Gap Coverage (mm)
12
Cutback (mm)
125, 130 (400 length only)
See separate datasheet for full details
