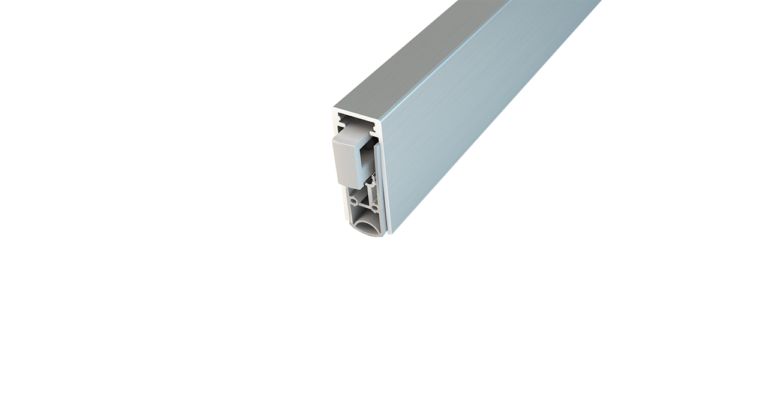

NOR810 Rebated

Application

Bottom edge of acoustic timber doorsets

Fixing

Rebated, held in place with end caps

Performance

Suitable for use on most fire doors
Compliant with BS 476-22
UL Approval
Smoke tested in accordance with BS 476-31.1
Acoustically tested in accordance with BS EN ISO 10140-2
Certifire CF629
1,000,000 cycle tested

Standard Lengths (mm)

320, 435, 535, 635, 735, 835, 935, 1035, 1135, 1235, 1335, 1435, 1535

Minimum Length (mm)

320

Actuation

Single

Material

Aluminium, Silicone gasket

Size(s) (mm)

14×35

Colour(s)

Mill finish, Grey gasket

Maximum Length (mm)

1700

Maximum Gap Coverage (mm)

20

Cutback (mm)

Various, >100, 320 limited to 85See separate datasheet for full details

Documentation

• NOR810CAD
• New-810-fitting-V1.1.0
• NOR810-1
• ULBS
• Certifire
