Applique 37db SM

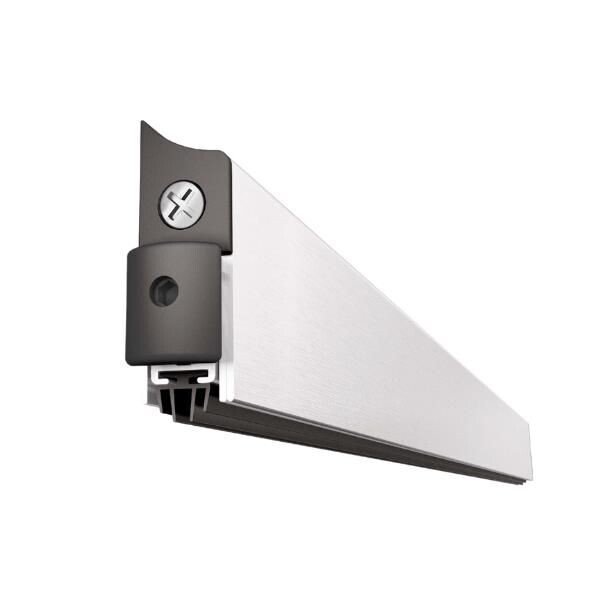

Applique 37 Surface Mounted.

Surface mounted for retro fitting on timber door sets Acoustically tested achieving up to 37dB Rw

The Applique is a high-performance surface-mounted drop seal that is designed to stop fire and smoke from passing under a fire door, as well as providing an effective barrier against noise, light & insects.

Its an ideal seal to meet Document part E & M of the UK building regulations where disability, access and energy conservation is required.

Can be cut down by 150mm to your required size.

Features and Benefits

Screw fix (screws supplied)

• Can be fitted to inside (lock side using bumper provided), or outside of the door (non lock side)

• Satin Anodised Aluminium finish - Also available in White, Brown and Gold anodised to special order

• Seal drops on hinge side before lock side

• 14 mm maximum drop

• Galvanized steel flat springs and reinforced actuators

• 4-fin high quality ‘V’ zero class PVC rubber seal, self-extinguishing

Acoustic Performance and Fire Testing

Acoustic testing undertaken in accordance with BS EN

ISO 140-3:1995 achieving a rating of up to 37dB Rw

Fire tested to BS476: Part 20/22: 1987 to 60 minutes

Smoke tested to BS EN 1634-3: 2004

Documentation

• Certificate
• Technical Report
• CCE Applique Instructions
• APPLIQUE 60 MIN FIRE TEST
• Technical DataSheet
